CCNA 3 Pretest 2020 Edition Answers

CCNA 3 Pretest 2020 Edition Answers. Get all of the validated answers for the CCNA 3 Pretest 2020 Edition Answers. Ideal for quick and fast review or getting ready for the actual test. if you have short time then you are on right place.

CCNA 3 Pretest 2020 Edition Answers

This is the CCNA 3 Pretest 2020 exam with 100% correct answers:

Q1. What route would have the lowest administrative distance?

1. a directly connected network
2. a route received through the EIGRP routing protocol
3. a static route
4. a route received through the OSPF routing protocol

Q2. Refer to the exhibit. What command would be used to configure a static route on R1 so that traffic from both LANs can reach the 2001:db8:1:4::/64 remote network?

1. ipv6 route 2001:db8:1:4::/64 2001:db8:1:3::2
2. ipv6 route 2001:db8:1::/65 2001:db8:1:3::1
3. ipv6 route 2001:db8:1:4::/64 2001:db8:1:3::1
4. ipv6 route ::/0 serial0/0/0

Q3. What is a characteristic of the distribution layer in the three layer hierarchical model?

1. distributes access to end users
2. acts as the backbone for the network, aggregating and distributing network traffic throughout the campus
3. represents the network edge
4. provides access to the rest of the network through switching, routing, and network access policies

One of the functions of the distribution layer is aggregating large-scale wiring closet networks. Providing access to end users is a function of the access layer, which is the network edge. Acting as a backbone is a function of the core layer.

Q4. Which three statements are generally considered to be best practices in the placement of ACLs? (Choose three.)

1. Place extended ACLs close to the destination IP address of the traffic.
2. Place extended ACLs close to the source IP address of the traffic.
3. Place standard ACLs close to the destination IP address of the traffic.
4. For every inbound ACL placed on an interface, there should be a matching outbound ACL.
5. Filter unwanted traffic before it travels onto a low-bandwidth link.
6. Place standard ACLs close to the source IP address of the traffic.

Extended ACLs should be placed as close as possible to the source IP address, so that traffic that needs to be filtered does not cross the network and use network resources. Because standard ACLs do not specify a destination address, they should be placed as close to the destination as possible. Placing a standard ACL close to the source may have the effect of filtering all traffic, and limiting services to other hosts. Filtering unwanted traffic before it enters low-bandwidth links preserves bandwidth and supports network functionality. Decisions on placing ACLs inbound or outbound are dependent on the requirements to be met.

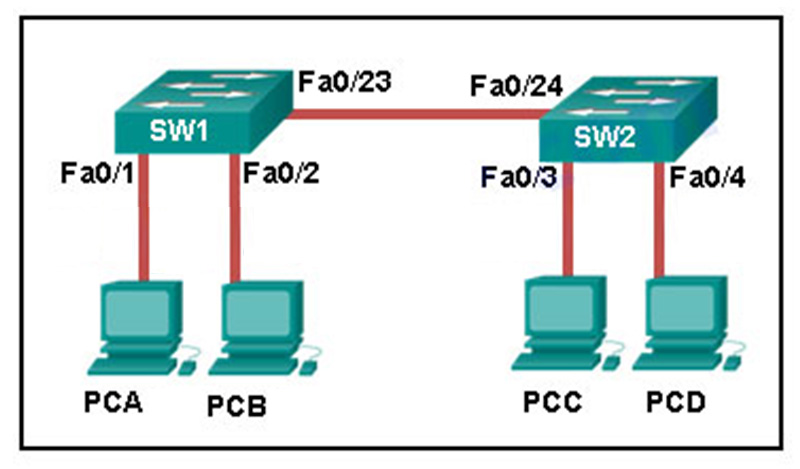

Q5. Refer to the exhibit. How is a frame sent from PCA forwarded to PCC if the MAC address table on switch SW1 is empty?

1. SW1 floods the frame on all ports on the switch, excluding the interconnected port to switch SW2 and the port through which the frame entered the switch.
2. SW1 forwards the frame directly to SW2.
3. SW2 floods the frame to all ports connected to SW2, excluding the port through which the frame entered the switch.
4. SW1 drops the frame because it does not know the destination MAC address.
5. SW1 floods the frame on all ports on SW1, excluding the port through which the frame entered the switch.

When a switch powers on, the MAC address table is empty. The switch builds the MAC address table by examining the source MAC address of incoming frames. The switch forwards based on the destination MAC address found in the frame header. If a switch has no entries in the MAC address table or if the destination MAC address is not in the switch table, the switch will forward the frame out all ports except the port that brought the frame into the switch.

Q6. Which address prefix range is reserved for IPv4 multicast?

1. 169.254.0.0 – 169.254.255.255
2. 127.0.0.0 – 127.255.255.255
3. 240.0.0.0 – 254.255.255.255
4. 224.0.0.0 – 239.255.255.255

Multicast IPv4 addresses use the reserved class D address range of 224.0.0.0 to 239.255.255.255.

Q7. Which statement describes a difference between the operation of inbound and outbound ACLs?

1. Inbound ACLs are processed before the packets are routed while outbound ACLs are processed after the routing is completed.
2. On a network interface, more than one inbound ACL can be configured but only one outbound ACL can be configured.
3. Inbound ACLs can be used in both routers and switches but outbound ACLs can be used only on routers.
4. In contrast to outbound ALCs, inbound ACLs can be used to filter packets with multiple criteria.

Q8. What are three primary benefits of using VLANs? (Choose three.)

1. no required configuration
2. security
3. a reduction in the number of trunk links
4. cost reduction
5. improved IT staff efficiency
6. end user satisfaction

Security, cost reduction, and improved IT staff efficiency are all benefits of using VLANs, along with higher performance, broadcast storm mitigation, and simpler project and application management. End users are not usually aware of VLANs, and VLANs do require configuration. Because VLANs are assigned to access ports, they do not reduce the number of trunk links.

Q9. What routing table entry has a next hop address associated with a destination network?

1. directly-connected routes
2. local routes
3. C and L source routes
4. remote routes

Routing table entries for remote routes will have a next hop IP address. The next hop IP address is the address of the router interface of the next device to be used to reach the destination network. Directly-connected and local routes have no next hop, because they do not require going through another router to be reached.

Q10. Which type of inter-VLAN communication design requires the configuration of multiple subinterfaces?

1. legacy inter-VLAN routing
2. routing via a multilayer switch
3. routing for the management VLAN
4. router on a stick

The router-on-a-stick design always includes subinterfaces on a router. When a multilayer switch is used, multiple SVIs are created. When the number of VLANs equals the number of ports on a router, or when the management VLAN needs to be routed, any of the inter-VLAN design methods can be used.

Q11. Which two devices allow hosts on different VLANs to communicate with each other? (Choose two.)

1. repeaterhub
2. Layer 3 switch
3. Layer 2 switch
4. router

Members of different VLANs are on separate networks. For devices on separate networks to be able to communicate, a Layer 3 device, such as a router or Layer 3 switch, is necessary.

Q12. Which two statements correctly describe a router memory type and its contents? (Choose two.)

1. ROM is nonvolatile and stores the running IOS.
2. FLASH is nonvolatile and contains a limited portion of the IOS.
3. RAM is volatile and stores the IP routing table.
4. NVRAM is nonvolatile and stores a full version of the IOS.
5. ROM is nonvolatile and contains basic diagnostic software.

ROM is a nonvolatile memory and stores bootup instructions, basic diagnostic software, and a limited IOS. Flash is a nonvolatile memory used as permanent storage for the IOS and other system-related files. RAM is volatile memory and stores the IP routing table, IPv4 to MAC address mappings in the ARP cache, packets that are buffered or temporarily stored, the running configuration, and the currently running IOS. NVRAM is a nonvolatile memory that stores the startup configuration file.

Q13. Refer to the exhibit. In what switch mode should port G0/1 be assigned if Cisco best practices are being used?

1. auto
2. trunk
3. native
4. access

The router is used to route between the two VLANs, thus switch port G0/1 needs to be configured in trunk mode.

Q14. Why does a Layer 3 device perform the ANDing process on a destination IP address and subnet mask?

1. to identify the network address of the destination network
2. to identify the broadcast address of the destination network
3. to identify the host address of the destination host
4. to identify faulty frames

Q15. Which range of link-local addresses can be assigned to an IPv6-enabled interface?

1. FE80::/10
2. FEC0::/10
3. FF00::/8
4. FDEE::/7

Q16. What are three parts of an IPv6 global unicast address? (Choose three.)

1. a subnet ID that is used to identify networks inside of the local enterprise site
2. an interface ID that is used to identify the local host on the network
3. a global routing prefix that is used to identify the network portion of the address that has been provided by an ISP
4. an interface ID that is used to identify the local network for a particular host
5. a global routing prefix that is used to identify the portion of the network address provided by a local administrator

Q17. An IPv6 enabled device sends a data packet with the destination address of FF02::2. What is the target of this packet?

1. all IPv6 enabled devices on the local link
2. all IPv6 DHCP servers
3. all IPv6 configured routers on the local link
4. all IPv6 enabled devices across the network

FF02::2 identifies all IPv6 routers that exist on the link or network. FF02::1 is the target for all IPv6 enabled devices on the link or network.​

Q18. A router is configured to participate in multiple routing protocol: RIP, EIGRP, and OSPF. The router must send a packet to network 192.168.14.0. Which route will be used to forward the traffic?

1. a 192.168.14.0/26 route that is learned via RIP
2. a 192.168.14.0/25 route that is learned via RIP
3. a 192.168.14.0/25 route that is learned via OSPF
4. a 192.168.14.0/24 route that is learned via EIGRP

Q19. Which subnet would include the address 192.168.1.96 as a usable host address?

1. 192.168.1.64/29
2. 192.168.1.32/28
3. 192.168.1.32/27
4. 192.168.1.64/26

For the subnet of 192.168.1.64/26, there are 6 bits for host addresses, yielding 64 possible addresses. However, the first and last subnets are the network and broadcast addresses for this subnet. Therefore, the range of host addresses for this subnet is 192.168.1.65 to 192.168.1.126. The other subnets do not contain the address 192.168.1.96 as a valid host address.

Q20. What does the IP address 192.168.1.15/29 represent?

1. multicast address
2. broadcast address
3. unicast address
4. subnetwork address

A broadcast address is the last address of any given network. This address cannot be assigned to a host, and it is used to communicate with all hosts on that network.

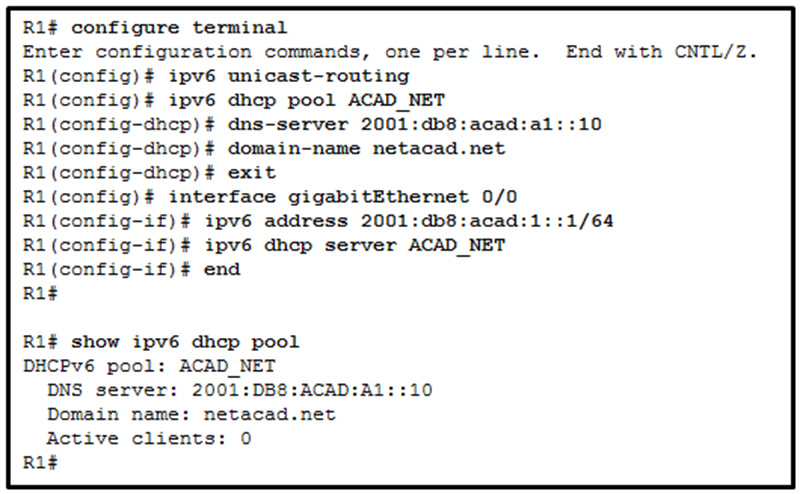

Q21. Refer to the exhibit. A network administrator is implementing the stateless DHCPv6 operation for the company. Clients are configuring IPv6 addresses as expected. However, the clients are not getting the DNS server address and the domain name information configured in the DHCP pool. What could be the cause of the problem?

1. The GigabitEthernet interface is not activated.
2. The DNS server address is not on the same network as the clients are on.
3. The router is configured for SLAAC operation.
4. The clients cannot communicate with the DHCPv6 server, evidenced by the number of active clients being 0.

The router is configured for SLAAC operation because there is no configuration command to change the RA M and O flag value. By default, both M and O flags are set to 0. In order to permint stateless DHCPv6 operation, the interface command ipv6 nd other-config-flag should be issued. The GigabitEthernet interface is in working condition because clients can get RA messages and configure their IPv6 addresses as expected. Also, the fact that R1 is the DHCPv6 server and clients are getting RA messages indicates that clients can communicate with the DHCP server. The number of active clients is 0 because the DHCPv6 server does not maintain the state of clients IPv6 addresses (it is not configured for stateful DHCPv6 operation). The DNS server address issue is not relevant to the problem.

Q22. An organization is assigned an IPv6 address block of 2001:db8:0:ca00::/56. How many subnets can be created without using bits in the interface ID space?

1. 4096
2. 256
3. 512
4. 1024

Subnetting a /56 prefix to a /64 prefix involves increasing the network prefix by 8 bits. 8 bits will create 256 subnets. The last 64 bits of the address is reserved for the interface ID.

Q23. What is the term that is used for the area of a network that is affected when a device or network service experiences problems?

1. failure domain
2. user domain
3. broadcast domain
4. collision domain

Explanation: A failure domain is a portion of the network that is affected when a device or service fails or experiences problems.

Q24. As the network administrator you have been asked to implement EtherChannel on the corporate network. What does this configuration consist of?

1. grouping two devices to share a virtual IP address
2. providing redundant links that dynamically block or forward traffic
3. providing redundant devices to allow traffic to flow in the event of device failure
4. grouping multiple physical ports to increase bandwidth between two switches

EtherChannel is utilized on a network to increase speed capabilities by grouping multiple physical ports into one or more logical EtherChannel links between two switches. STP is used to provide redundant links that dynamically block or forward traffic between switches. FHRPs are used to group physical devices to provide traffic flow in the event of failure.

Q25. Which characteristic would most influence a network design engineer to select a multilayer switch over a Layer 2 switch?

1. ability to aggregate multiple ports for maximum data throughput
2. ability to have multiple forwarding paths through the switched network based on VLAN number(s)
3. ability to build a routing table
4. ability to provide power to directly-attached devices and the switch itself

Multilayer switches, also known as Layer 3 switches, can route and build a routing table. This capability is required in a multi-VLAN network and would influence the network designer to select a multilayer switch. The other options are features also available on Layer 2 switches, so they would not influence the decision to select a multilayer switch.

Q26. A network administrator is planning to add a new switch to the network. What should the network administrator do to ensure the new switch exchanges VTP information with the other switches in the VTP domain?

1. Configure all ports on the new switch to access mode.
2. Configure the VLANs on the new switch.
3. Associate all ports of the new switch to a VLAN that is not VLAN 1.
4. Configure the correct VTP domain name and password on the new switch.

In order to exchange VTP information, the new switch must be configured with the same VTP domain name and password as the other switches in the network.

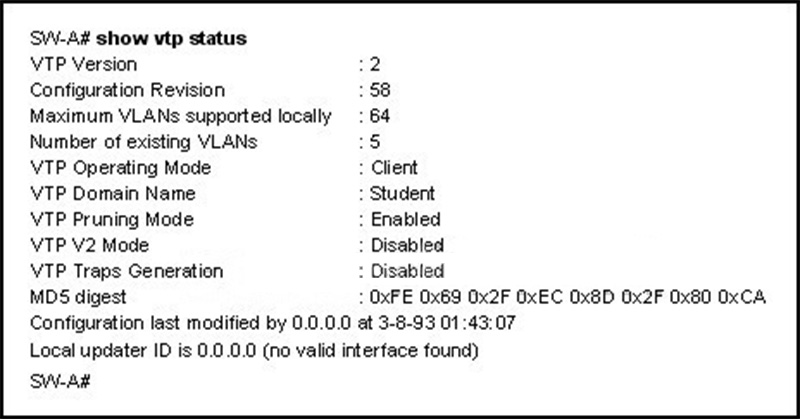

Q27. Refer to the exhibit. Switch SW-A is to be used as a temporary replacement for another switch in the VTP Student domain. What two pieces of information are indicated from the exhibited output? (Choose two.)

1. There is a risk that the switch may cause incorrect VLAN information to be sent through the domain.
2. VLAN configuration changes made on this switch will be sent to other devices in the VTP domain.
3. The other switches in the domain can be running either VTP version 1 or 2.
4. This switch will update its VLAN configuration when VLAN changes are made on a VTP server in the same domain.
5. VTP will block frame forwarding on at least one redundant trunk port that is configured on this switch.

If a switch on the same VTP domain is added to the network and the switch has a higher configuration revision number, valid VLANs can be deleted and VLANs from the new switch can be sent to other switches in the VTP domain. This can result in loss of connectivity for some network devices. Always put a false domain name on a new switch and then change the VTP domain name to the correct one so the configuration revision number will be at 0 on the switch to be added.

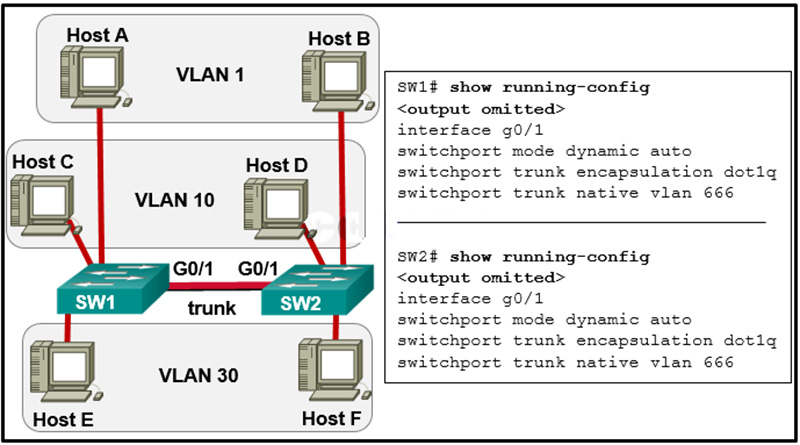

Q28. Refer to the exhibit. The network administrator configures both switches as displayed. However, host C is unable to ping host D and host E is unable to ping host F. What action should the administrator take to enable this communication?

1. Associate hosts A and B with VLAN 10 instead of VLAN 1.
2. Configure either trunk port in the dynamic desirable mode.
3. Include a router in the topology.
4. Add the switchport nonegotiate command to the configuration of SW2.
5. Remove the native VLAN from the trunk.

If one trunk port is in auto DTP negotiation mode, a trunk will be formed if the adjacent switch port is placed in trunk or dynamic desirable mode.

Q29. What eliminates switching loops?

1. Time to Live
2. VTP
3. hold-down timers
4. poison reverse
5. Spanning Tree Protocol

Spanning tree creates a single path through a switch network. This is important at Layer 2 because there is no feature such as the Layer 3 TTL to stop data from traveling infinitely through the network. This helps keep switch MAC address tables stable in broadcast storms, and when multiple frames are sent.

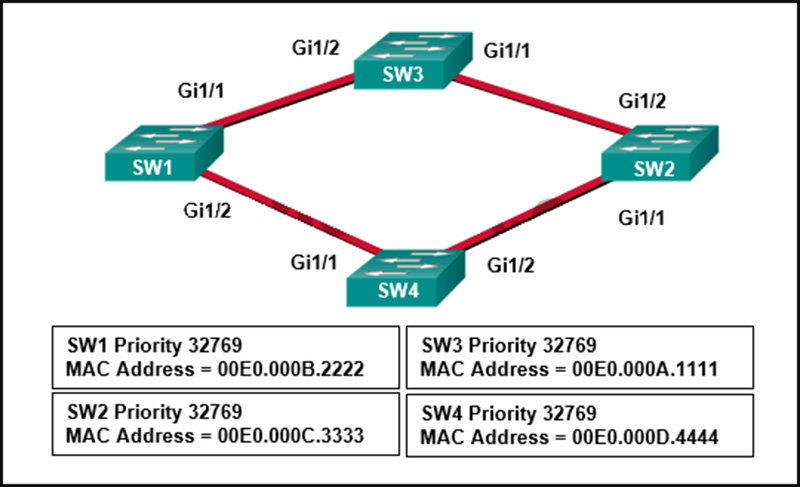

Q30. Refer to the exhibit. Which switch will be elected the root bridge and which switch will place a port in blocking mode? (Choose two.)

1. SW2 will get a port blocked.
2. SW4 will get a port blocked.
3. SW1 will become the root bridge.
4. SW4 will become the root bridge.
5. SW2 will become the root bridge.
6. SW3 will become the root bridge.

The spanning-tree root bridge election process determines which switch becomes root bridge based first on the lowest priority number and then by lowest MAC address. Because all of the switches have the same priority value, SW3 becomes the root bridge based on lowest MAC address. To determine which ports are blocking or forwarding, first determine which ports become the root port on each switch. Then determine which port becomes the designated port for each link.

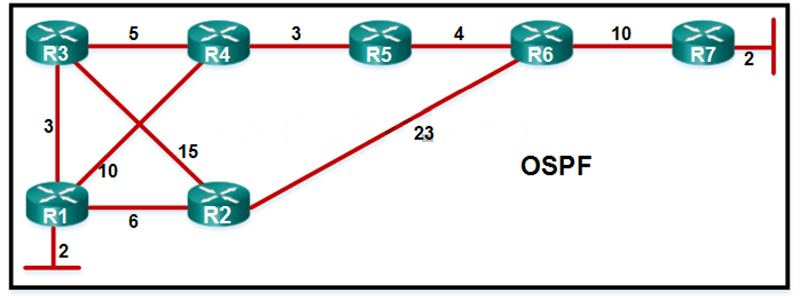

Q31. Refer to the exhibit. A network administrator has configured OSPF in the topology as shown. What is the preferred path to get from the LAN network that is connected to R1 to the LAN network that is connected to R7?

1. R1-R2-R6-R7
2. R1-R3-R4-R5-R6-R7
3. R1-R4-R5-R6-R7
4. R1-R3-R2-R6-R7

OSPF uses bandwidth to calculate the best path from source to destination. The path with the lowest cost from source to destination is elected as the best path.

Q32. Which statement describes the autonomous system number used in EIGRP configuration on a Cisco router?

1. It carries the geographical information of the organization.
2. It is a globally unique autonomous system number that is assigned by IANA.
3. It functions as a process ID in the operation of the router.
4. It identifies the ISP that provides the connection to network of the organization.

The autonomous system number used in the EIGRP configuration is not associated with the Internet Assigned Numbers Authority (IANA) globally assigned autonomous system numbers that are used by external routing protocols. It just functions as a process ID, which is necessary because a router may run multiple instances of EIGRP. Each instance of EIGRP can be configured to support and exchange routing updates for different networks. An organization has the freedom to choose its own AS number in the EIGRP configuration.

Q33. An EIGRP router loses the route to a network. Its topology table contains two feasible successors to the same network. What action will the router take?

1. The DUAL algorithm is recomputed to find an alternate route.
2. The best alternative backup route is immediately inserted into the routing table.
3. The router will query neighbors for an alternate route.
4. The router uses the default route.

Because EIGRP uses the DUAL algorithm, the router is able to maintain information on all potential loop-free backup routes. In the event of the failure of a routing table entry, the router immediately inserts the best backup route into the routing table.

Q34. What is a function of OSPF hello packets?

1. to send specifically requested link-state records
2. to ensure database synchronization between routers
3. to discover neighbors and build adjacencies between them
4. to request specific link-state records from neighbor routers

The OSPF hello packet serves three primary functions: discover OSPF neighbors and establish adjacencies, advertise parameters that OSPF neighbors must agree on, and elect the DR and BDR.

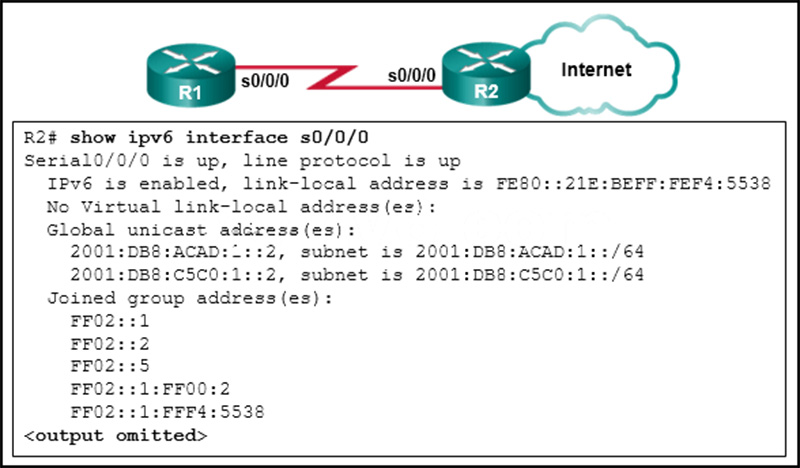

Q35. Refer to the exhibit. R1 and R2 are OSPFv3 neighbors. Which address would R1 use as the next hop for packets that are destined for the Internet?

1. 2001:DB8:C5C0:1::2
2. FE80::21E:BEFF:FEF4:5538
3. FF02::5
4. 2001:DB8:ACAD:1::2

Because IPv6 routers can have multiple global addresses on each interface (or none at all), OSPFv3 uses the link-local addresses as the next hop for all routes.

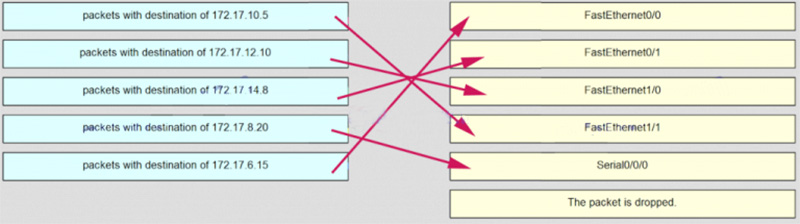

Q36. Refer to the exhibit. Match the packets with their destination IP address to the exiting interfaces on the router. (Not all targets are used.)

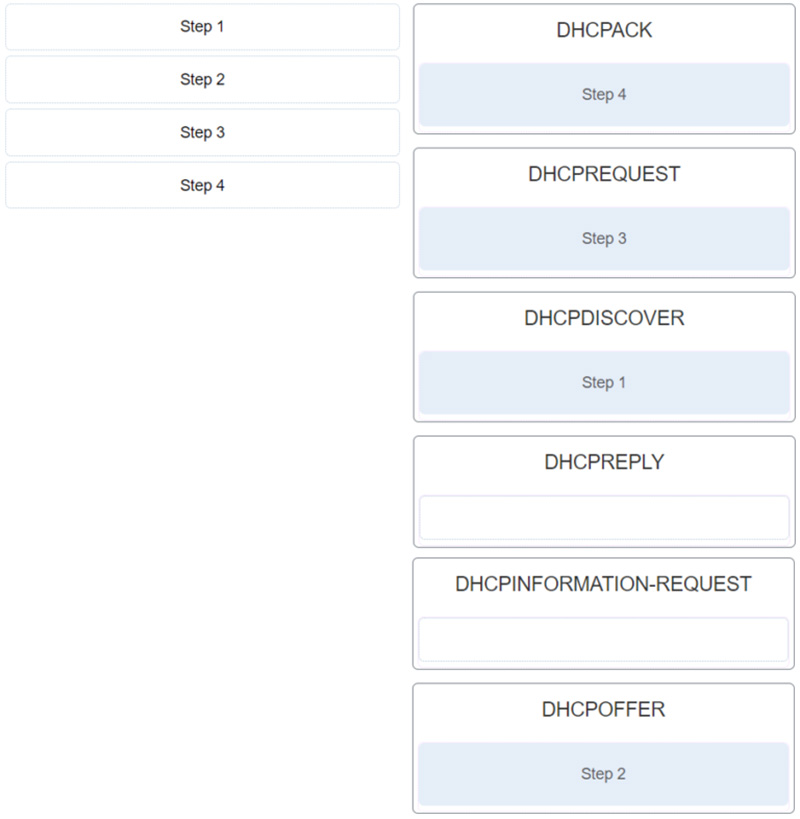

Q37. Match the DHCP message types to the order of the DHCPv4 process. (Not all options are used.)

Explanation: The broadcast DHCPDISCOVER message finds DHCPv4 servers on the network. When the DHCPv4 server receives a DHCPDISCOVER message, it reserves an available IPv4 address to lease to the client and sends the unicast DHCPOFFER message to the requesting client. When the client receives the DHCPOFFER from the server, it sends back a DHCPREQUEST. On receiving the DHCPREQUEST message the server replies with a unicast DHCPACK message. DHCPREPLY and DHCPINFORMATION-REQUEST are DHCPv6 messages.

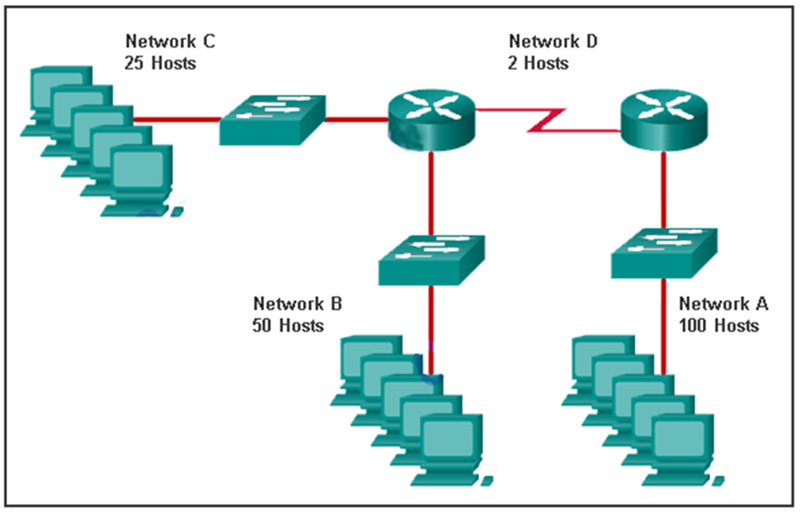

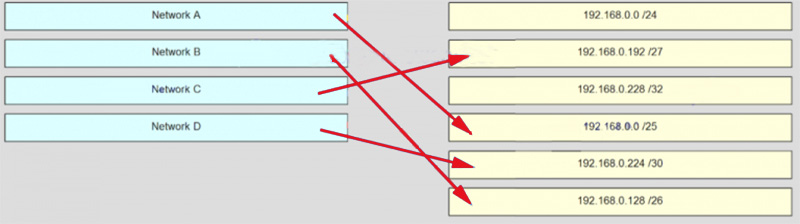

Q38. Refer to the exhibit. Match the network with the correct IP address and prefix that will satisfy the usable host addressing requirements for each network. (Not all options are used.)

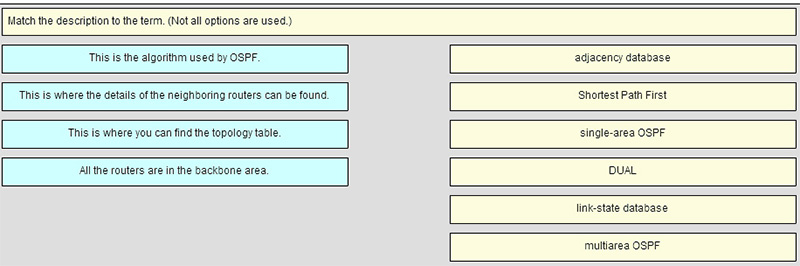

Q39. Match the description to the term. (Not all options are used.)

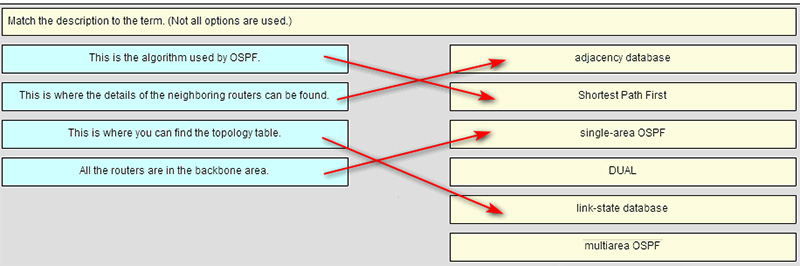

Place the options in the following order:

This is where the details of the neighboring routers can be found. -> adjacency database
This is the algorithm used by OSPF. -> Shortest Path First
All the routers are in the backbone area. -> Single-area OSPF
– not scored –
This is where you can find the topology table. -> link-state database
– not scored –

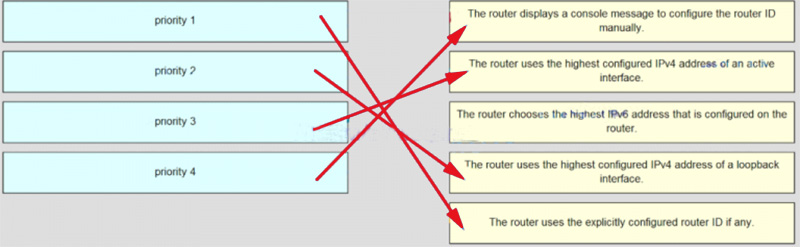

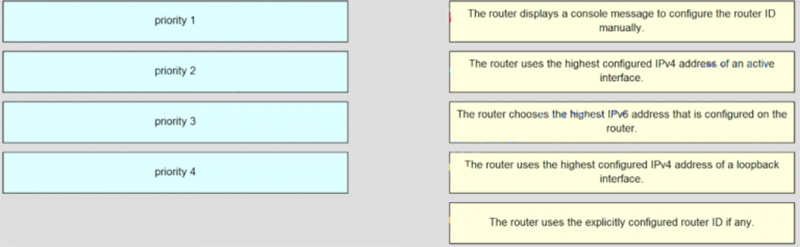

Q40. Match the order of precedence to the process logic that an OSPFv3 network router goes through in choosing a router ID. (Not all options are used.)

Older Version

Q41. A router needs to be configured to route within OSPF area 0. Which two commands are required to accomplish this? (Choose two.)

1. RouterA(config)# router ospf 0
2. RouterA(config)# router ospf 1
3. RouterA(config-router)# network 192.168.2.0 0.0.0.255 0
4. RouterA(config-router)# network 192.168.2.0 0.0.0.255 area 0
5. RouterA(config-router)# network 192.168.2.0 255.255.255.0 0

Q42. The computers used by the network administrators for a school are on the 10.7.0.0/27 network. Which two commands are needed at a minimum to apply an ACL that will ensure that only devices that are used by the network administrators will be allowed Telnet access to the routers? (Choose two.)

1. access-class 5 in
2. access-list 5 deny any
3. access-list standard VTY
   permit 10.7.0.0 0.0.0.127
4. access-list 5 permit 10.7.0.0 0.0.0.31
5. ip access-group 5 out
6. ip access-group 5 in

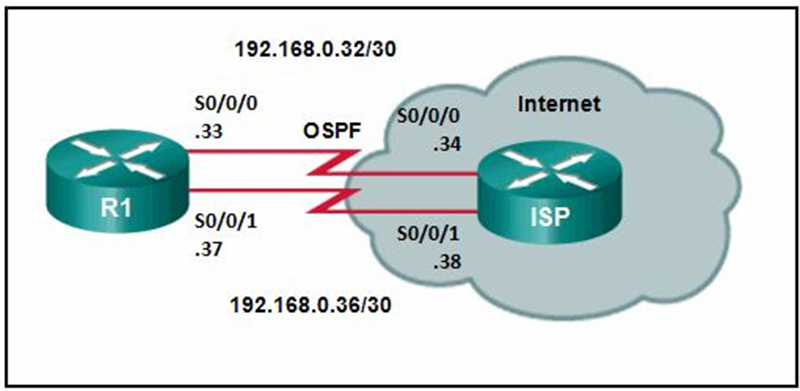

Q43. Refer to the exhibit. Router R1 has an OSPF neighbor relationship with the ISP router over the 192.168.0.32 network. The 192.168.0.36 network link should serve as a backup when the OSPF link goes down. The floating static route command ip route 0.0.0.0 0.0.0.0 S0/0/1 100 was issued on R1 and now traffic is using the backup link even when the OSPF link is up and functioning. Which change should be made to the static route command so that traffic will only use the OSPF link when it is up?

1. Add the next hop neighbor address of 192.168.0.36.
2. Change the administrative distance to 1.
3. Change the destination network to 192.168.0.34.
4. Change the administrative distance to 120.

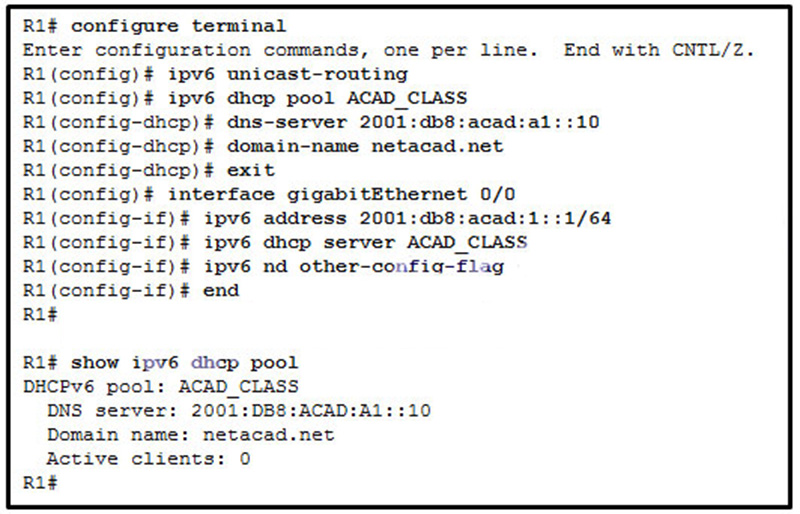

Q44. Refer to the exhibit. A network administrator is configuring a router as a DHCPv6 server. The administrator issues a show ipv6 dhcp pool command to verify the configuration. Which statement explains the reason that the number of active clients is 0?

1. The default gateway address is not provided in the pool.
2. No clients have communicated with the DHCPv6 server yet.
3. The IPv6 DHCP pool configuration has no IPv6 address range specified.
4. The state is not maintained by the DHCPv6 server under stateless DHCPv6 operation.

Q45. Refer to the exhibit. What summary static address should be configured on R3 to advertise to an upstream neighbor?

1. 192.168.0.0/24
2. 192.168.0.0/23
3. 192.168.0.0/22
4. 192.168.0.0/21

Q46. Which two commands should be implemented to return a Cisco 3560 trunk port to its default configuration? (Choose two.)

1. S1(config-if)# no switchport trunk allowed vlan
2. S1(config-if)# no switchport trunk native vlan
3. S1(config-if)# switchport mode dynamic desirable
4. S1(config-if)# switchport mode access
5. S1(config-if)# switchport access vlan 1

Q47. Which two methods can be used to provide secure management access to a Cisco switch? (Choose two.)

1. Configure all switch ports to a new VLAN that is not VLAN 1.
2. Configure specific ports for management traffic on a specific VLAN.
3. Configure SSH for remote management.
4. Configure all unused ports to a “black hole.”
5. Configure the native VLAN to match the default VLAN.

Q48. Which two factors are important when deciding which interior gateway routing protocol to use? (Choose two.)

1. scalability
2. ISP selection
3. speed of convergence
4. the autonomous system that is used
5. campus backbone architecture

Q49. Which three pieces of information does a link-state routing protocol use initially as link-state information for locally connected links? (Choose three.)

1. the link router interface IP address and subnet mask
2. the type of network link
3. the link next-hop IP address
4. the link bandwidth
5. the cost of that link

Q50. What is a disadvantage of NAT?

1. There is no end-to-end addressing.
2. The router does not need to alter the checksum of the IPv4 packets.
3. The internal hosts have to use a single public IPv4 address for external communication.
4. The costs of readdressing hosts can be significant for a publicly addressed network.

Q51. A network administrator is using the router-on-a-stick method to configure inter-VLAN routing. Switch port Gi1/1 is used to connect to the router. Which command should be entered to prepare this port for the task?

1. Switch(config)# interface gigabitethernet 1/1
   Switch(config-if)# spanning-tree vlan 1
2. Switch(config)# interface gigabitethernet 1/1
   Switch(config-if)# spanning-tree portfast
3. Switch(config)# interface gigabitethernet 1/1
   Switch(config-if)# switchport mode trunk
4. Switch(config)# interface gigabitethernet 1/1
   Switch(config-if)# switchport access vlan 1

Q52. What is a function of the distribution layer?

1. fault isolation
2. network access to the user
3. high-speed backbone connectivity
4. interconnection of large-scale networks in wiring closets

Q53. Which two statements are true about half-duplex and full-duplex communications? (Choose two.)

1. Full duplex offers 100 percent potential use of the bandwidth.
2. Half duplex has only one channel.
3. All modern NICs support both half-duplex and full-duplex communication.
4. Full duplex allows both ends to transmit and receive simultaneously.
5. Full duplex increases the effective bandwidth.

Q54. Which three parameters could be in an extended access control list? (Choose three.)

1. access list number between 1 and 99
2. access list number between 100 and 199
3. default gateway address and wildcard mask
4. destination address and wildcard mask
5. source address and wildcard mask
6. subnet mask and wild card mask

Q55. An organization needs to provide temporary voice and data services to a new small lab building. They plan to install an access switch in the new lab and connect it using a 100Mb/s FastEthernet trunk link. The network administrator is concerned about the capability of the link to meet quality requirements of the proposed voice and data services. The administrator plans to manage the datalink layer traffic to and from the lab so that trunk usage is optimized. What could the administrator apply to the trunk to help achieve this?

1. Disable Spanning Tree Protocol to provide maximum bandwidth for the voice and data traffic.
2. Configure the switches to run Per VLAN Spanning Tree for the voice and data VLANs only.
3. Configure the lab switch to use the same voice and data VLAN as the rest of the campus LAN.
4. Configure the trunk ports on the trunk link to the lab to allow only the voice and data VLANs.

Q56. Which statement is true about the difference between OSPFv2 and OSPFv3?

1. OSPFv3 routers use a different metric than OSPFv2 routers use.
2. OSPFv3 routers use a 128 bit router ID instead of a 32 bit ID.
3. OSPFv3 routers do not need to elect a DR on multiaccess segments.
4. OSPFv3 routers do not need to have matching subnets to form neighbor adjacencies.

Q57. Refer to the exhibit. Which address will R1 use as the source address for all OSPFv3 messages that will be sent to neighbors?

1. FE80::1
2. 2001:DB8:ACAD:A::1
3. FF02::1
4. FF02::5

Q58. What are two features of a link-state routing protocol? (Choose two.)

1. Routers send periodic updates only to neighboring routers.
2. Routers send triggered updates in response to a change.
3. Routers create a topology of the network by using information from other routers.
4. The database information for each router is obtained from the same source.
5. Paths are chosen based on the lowest number of hops to the designated router.

Q59. Which OSPF component is identical in all routers in an OSPF area after convergence?

1. adjacency database
2. link-state database
3. routing table
4. SPF tree

Q60. Which statement describes a characteristic of standard IPv4 ACLs?

1. They are configured in the interface configuration mode.
2. They filter traffic based on source IP addresses only.
3. They can be created with a number but not with a name.
4. They can be configured to filter traffic based on both source IP addresses and source ports.

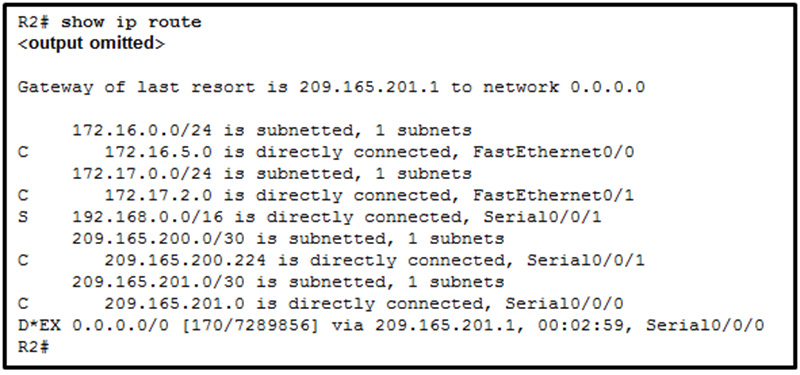

Q61. Refer to the exhibit. A network administrator issues the show ip route command on R2. What two types of routes are installed in the routing table? (Choose two.)

1. a configured default route
2. directly connected networks
3. routes that are learned through the OSPF routing protocol
4. routes that are learned through the EIGRP routing protocol
5. a configured static route to the network 209.165.200.224

Q62. Refer to the exhibit. Based on the output that is shown, what type of NAT has been implemented?

1. dynamic NAT with a pool of two public IP addresses
2. PAT using an external interface
3. static NAT with one entry
4. static NAT with a NAT pool

Q63. What condition is required to enable Layer 3 switching?

1. The Layer 3 switch must have IP routing enabled.
2. All participating switches must have unique VLAN numbers.
3. All routed subnets must be on the same VLAN.
4. Inter-VLAN portions of Layer 3 switching must use router-on-a-stick.

Q64. Fill in the blank.

The _____________ command is used to configure the default gateway on a switch.

Ans: ip default-gateway

Q65. Open the PT Activity. Perform the tasks in the activity instructions and then answer the question. Which PCs will receive the broadcast sent by PC-C?

1. PC-A, PC-B
2. PC-D, PC-E
3. PC-A, PC-B, PC-E
4. PC-A, PC-B, PC-D, PC-E
5. PC-A, PC-B, PC-D, PC-E, PC-F

Q66. When are EIGRP update packets sent?

1. only when necessary
2. when learned routes age out
3. every 5 seconds via multicast
4. every 30 seconds via broadcast

Q67. Which statement describes a characteristic of the delivery of EIGRP update packets?

1. EIGRP uses UDP to send all update packets.
2. EIGRP sends all update packets via unicast.
3. EIGRP sends all update packets via multicast.
4. EIGRP uses a reliable delivery protocol to send all update packets.

Q68. What is the purpose of the Spanning Tree Protocol (STP)?

1. prevents Layer 2 loops
2. prevents routing loops on a router
3. creates smaller collision domains
4. creates smaller broadcast domains
5. allows Cisco devices to exchange routing table updates

Q69. Which statement is true regarding states of the IEEE 802.1D Spanning Tree Protocol?

1. Ports are manually configured to be in the forwarding state.
2. Ports listen and learn before going into the forwarding state.
3. Ports must be blocked before they can be placed in the disabled state.
4. It takes 15 seconds for a port to go from blocking to forwarding

Q70. Which wireless encryption method is the most secure?

1. WPA
2. WEP
3. WPA2 with TKIP
4. WPA2 with AES

Q71. Which wireless network topology is being configured by a technician who is installing a keyboard, a mouse, and headphones, each of which uses Bluetooth?

1. ad hoc mode
2. hotspot
3. infrastructure mode
4. mixed mode

Explanation: Tethering enables a wireless device such as a phone to provide wireless Internet connectivity to other devices, thus creating a hotspot. Infrastructure mode is the type of wireless network that is created when an access point is being used. Mixed mode allows older wireless NICs to attach to an access point that can use a newer wireless standard.

Q72. A network engineer is troubleshooting a newly deployed wireless network that is using the latest 802.11 standards. When users access high bandwidth services such as streaming video, the wireless network performance is poor. To improve performance the network engineer decides to configure a 5 Ghz frequency band SSID and train users to use that SSID for streaming media services. Why might this solution improve the wireless network performance for that type of service?

1. The 5 GHz band has a greater range and is therefore likely to be interference-free.
2. Requiring the users to switch to the 5 GHz band for streaming media is inconvenient and will result in fewer users accessing these services.
3. The 5 GHz band has more channels and is less crowded than the 2.4 GHz band, which makes it more suited to streaming multimedia.
4. The only users that can switch to the 5 GHz band will be those with the latest wireless NICs, which will reduce usage.

Q73. What are two advantages of EtherChannel? (Choose two.)

1. Configuring the EtherChannel interface provides consistency in the configuration of the physical links.
2. Load balancing occurs between links configured as different EtherChannels.
3. EtherChannel uses upgraded physical links to provide increased bandwidth.
4. Spanning Tree Protocol views the physical links in an EtherChannel as one logical connection.
5. Spanning Tree Protocol ensures redundancy by transitioning failed interfaces in an EtherChannel to a forwarding state.

Q74. Refer to the exhibit. Which destination MAC address is used when frames are sent from the workstation to the default gateway?

1. MAC address of the forwarding router
2. MAC addresses of both the forwarding and standby routers
3. MAC address of the standby router
4. MAC address of the virtual router

Explanation: The IP address of the virtual router acts as the default gateway for all the workstations. Therefore, the MAC address that is returned by the Address Resolution Protocol to the workstation will be the MAC address of the virtual router.

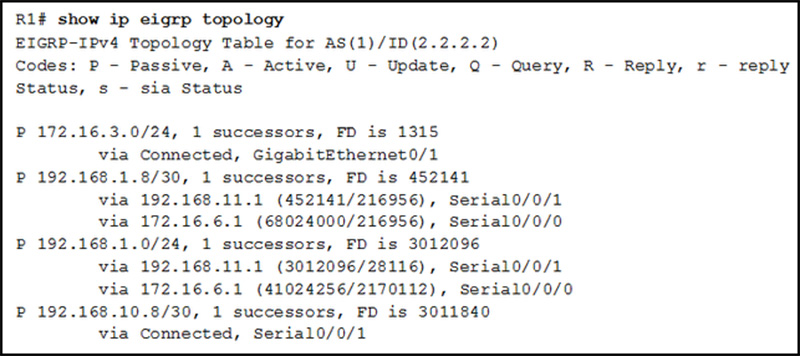

Q75. Refer to the exhibit. Which two conclusions can be derived from the output? (Choose two.)

1. There is one feasible successor to network 192.168.1.8/30.
2. The network 192.168.10.8/30 can be reached through 192.168.11.1.
3. The reported distance to network 192.168.1.0/24 is 41024256.
4. The neighbor 172.16.6.1 meets the feasibility condition to reach the 192.168.1.0/24 network.
5. Router R1 has two successors to the 172.16.3.0/24 network.

Explanation: The second entry in the table indicates that there is one feasible successor (“1 successors”) for network 192.168.1.8/30. The last entry in the table shows that network 192.168.10.8/30 is directly connected, so it is not reachable through network 192.168.11.1. The third entry indicates that the reported distances for network 192.168.1.0 are 28116 and 2170112, not 41024256. This same entry shows that neighbor 172.16.6.1 is a feasible successor for network 192.168.1.0. The first entry indicates that R1 has only one successor, not two to network 172.16.3.0/24.

Q76. Refer to the exhibit. What can be concluded about network 192.168.1.0 in the R2 routing table?

1. This network has been learned from an internal router within the same area.
2. This network was learned through summary LSAs from an ABR.
3. This network is directly connected to the interface GigabitEthernet0/0.
4. This network should be used to forward traffic toward external networks.

Explanation: In a routing table, the designation O IA means the entry was learned from an interarea LSA that was generated from an ABR. The C label indicates a network that is directly connected to an interface on the router. The O label indicates a network that is advertised by another router in the same area. The label O*E2 indicates an external network. In this case, the network designation of 0.0.0.0/0 indicates that this external network is the default route for all traffic that is destined for external networks.

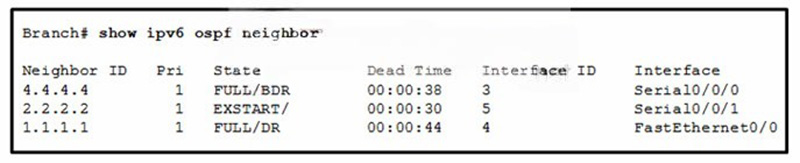

Q77. Refer to the exhibit. A network technician is troubleshooting missing OSPFv3 routes on a router. What is the cause of the problem based on the command output?

1. There is a problem with the OSPFv3 adjacency between the local router and the router that is using the neighbor ID 2.2.2.2.
2. The local router has formed complete neighbor adjacencies, but must be in a 2WAY state for the router databases to be fully synchronized.
3. The dead time must be higher than 30 for all routers to form neighbor adjacencies.
4. The neighbor IDs are incorrect. The interfaces must use only IPv6 addresses to ensure fully synchronized routing databases.

Explanation: If the output of the show ipv6 ospf neighbor command does not show a state of FULL or 2WAY , the two routers have not formed an OSPFv3 adjacency. If two routers do not establish an adjacency, the link-state information will not be exchanged, and routes to destination networks may not exist.

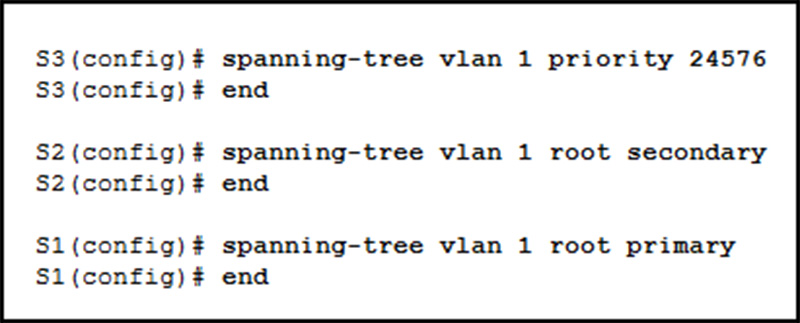

Q78. Refer to the exhibit. What are two results of issuing the displayed commands on S1, S2, and S3? (Choose two.)

1. S1 will automatically adjust the priority to be the lowest.
2. S1 will automatically adjust the priority to be the highest.
3. S3 can be elected as a secondary bridge.
4. S2 can become root bridge if S3 fails.
5. S2 can become root bridge if S1 fails.

Q79. A network administrator is troubleshooting slow performance in a Layer 2 switched network. Upon examining the IP header, the administrator notices that the TTL value is not decreasing. Why is the TTL value not decreasing?

1. This is the normal behavior for a Layer 2 network.
2. The MAC address table is corrupt.
3. The VLAN database is full.
4. The outbound interface is set for half duplex.

Q80. What are the two methods that a wireless NIC can use to discover an AP? (Choose two.)

1. sending an ARP request broadcast
2. sending a multicast frame
3. transmitting a probe request
4. initiating a three-way handshake
5. receiving a broadcast beacon frame

Also Read: CCNA 2 Final 2020 Exam Answers

Note: If you have the new question on this test, please comment Question and Multiple-Choice list in form below this article. We will update answers for you in the shortest time. Thank you! We truly value your contribution to the website.
